ScissorLoc™ II intersecting solid wood sub floor creates a dimensionally stable system with excellent natural ventilation capabilities. ScissorLoc™ II can withstand heavier loads due to its ability to adjust to the contour of the floor. The option of our patented PowerVent™ Advanced Airflow system adds a feature which will detect moisture and start drying the system with mechanical airflow.
- Infinity MFMA MapleInfinity's straight line cutting, in line moisture monitoring and a climate-controlled facility help to eliminate bowed boards, improper wood moisture and exposure to adverse humidity.
- Dimensioned PineNominal 1" x 6" (19mm x 140mm) Solid Pine subfloor components
- Excellent Ventilation Passage ThroughoutScissorLoc provides the most optimum ventilated subfloor system of any hardwood athletic floor.
- 1/4" (6mm) Performance FoamFull blanket resilient layer
- AacerStop Vapor RetarderAacerStop vapor retarder is offered at various permeability levels to address related concrete vapor emission.
- Concrete
- PowerVent Airflow OptionPowerVent provides balanced humidity, maximum ventilation, and moisture detection
Rollover the image for more details
Features and Benefits
- Floating System – Intersecting Subfloor Design
- Other ScissorLoc Systems available: I, III, DC, LP
- Closed cell foam underlayment creates a uniform resilient surface and provides a vapor barrier
- Nominal 1″x 6″ solid pine subfloor configuration allows natural airflow beneath the floor and creates a uniform resilient surface
- Optional Accessory Available: PowerVent™ Advanced Airflow System (U.S. Patent #9,719,268)
- Great option for gymnasiums, multipurpose rooms, stage, racquetball and replacement for Synthetic
- Ideal for uneven substrates

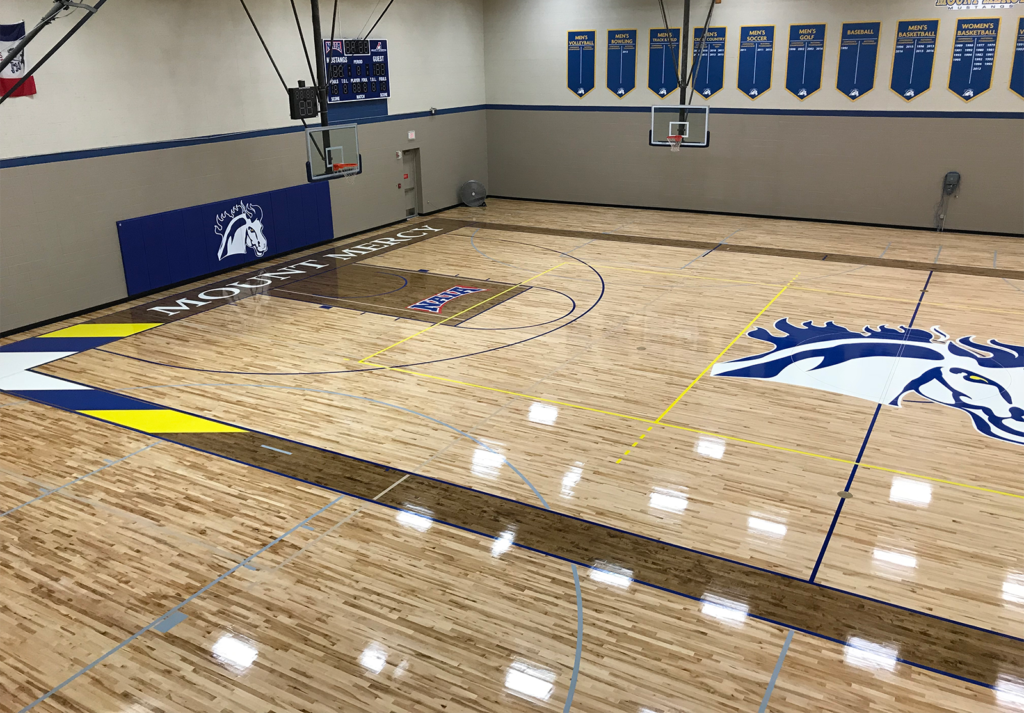

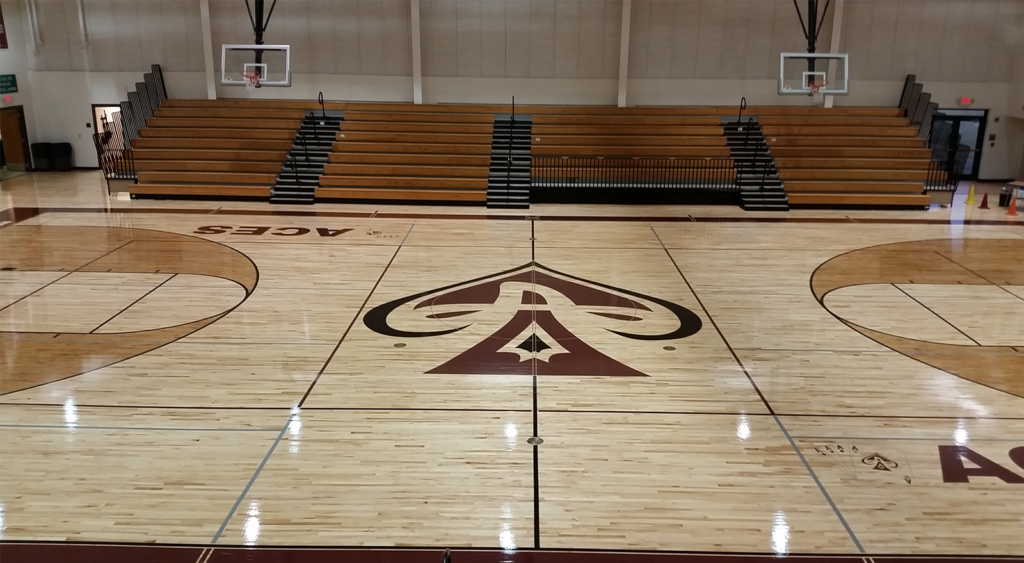

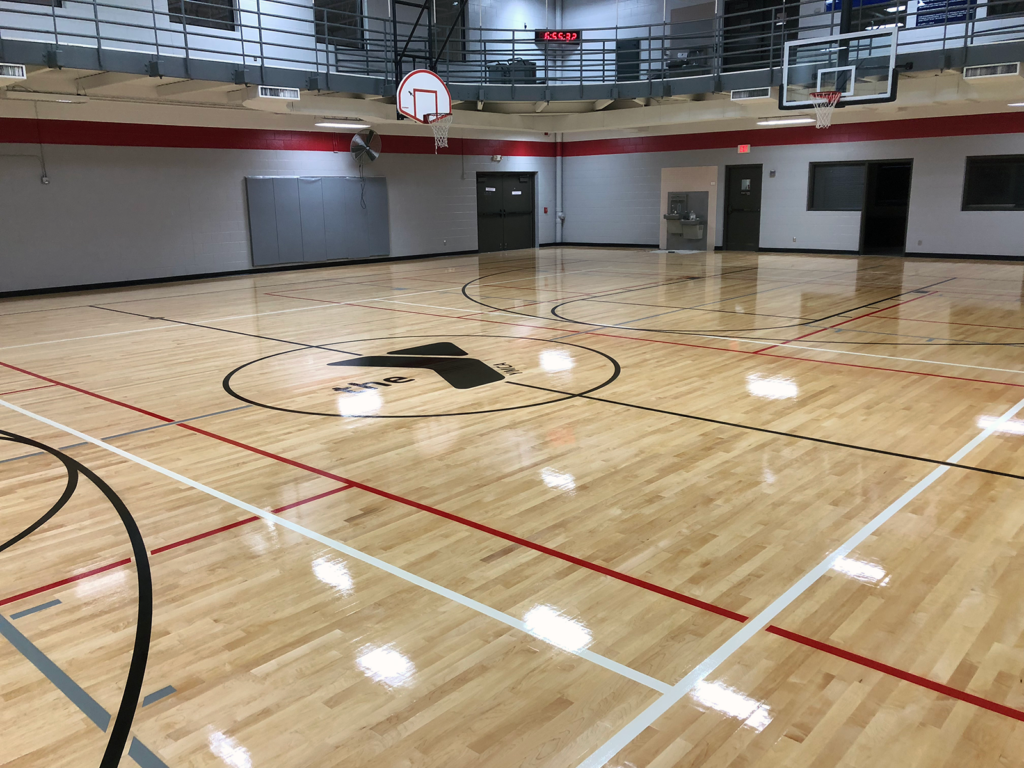

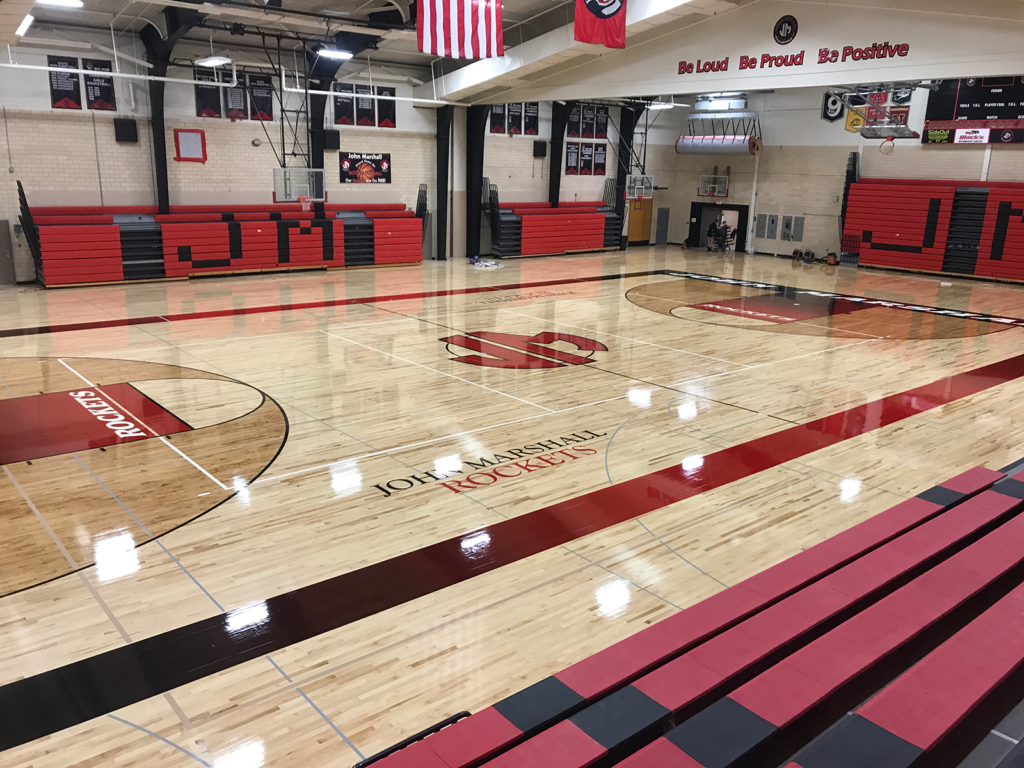

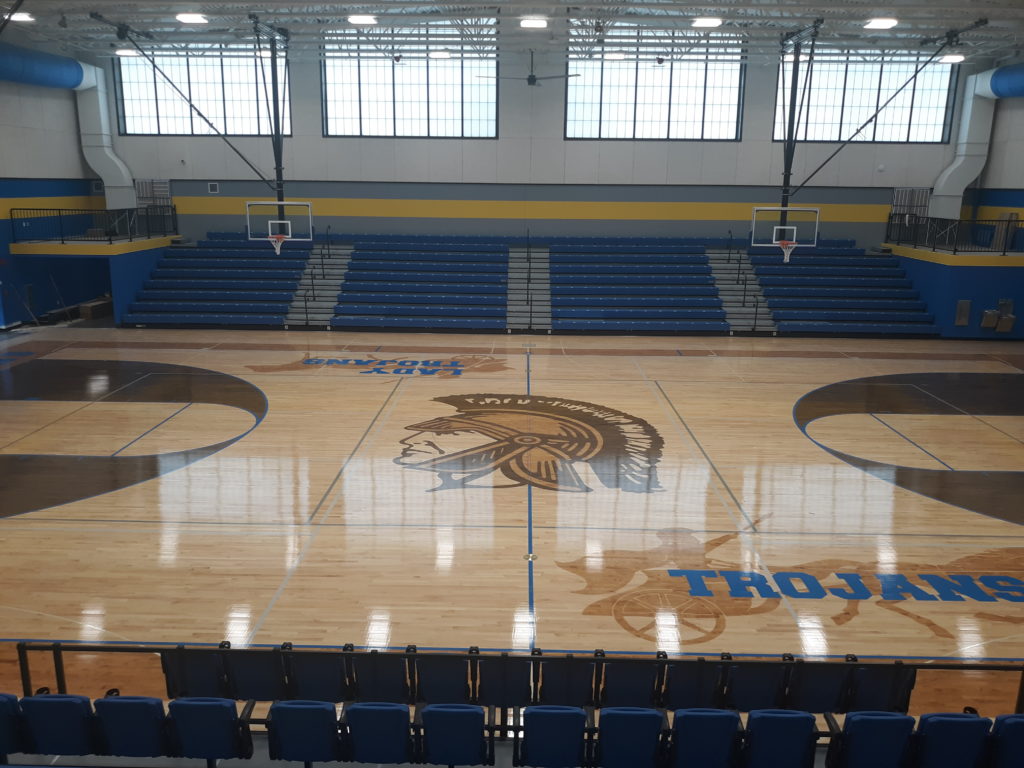

Representative Installations
- Washington College/Cain Athletic, Chestertown, MD
- Quincy University, Quincy, IL
- West Las Vegas Middle School, Las Vegas, NM
- Highview Elementary School, Nanuet, NY
- Amarillo High School, Amarillo, TX
- Lamoure School, Lamoure, ND
- Triton High School, Erwin, NC
- Jewish Community Center, Harahan, LA
*This is a partial listing. Contact your Aacer representative for additional installations.
